EPC series EPC13 horizontal type customized high frequency single ferrite core power transformer for led driver
Features:
1. Custom designs available
2. High efficiency of over 95%
3. High frequency range 1KHz-1MHz
4. High isolation strength
5. High-temperature resistant
6. Operating temperature -40°C to +125°C
7. Power range 10w-500w
EP Transformer
Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: Greenfair, GFE, GE
Model Number: EP6/6, EP6/6A, EP7/8, EP9/7, EP9/7A, EP9/10, EP10/9, EP12/10, EP13/13, EP15/10, EP18/17, EP24/21, EP6/6, EP9/7, EP12/10, EP13/13, EP18/17, EP24/21.
Usage: High Frequency
Phase: Single
Coil Structure: Toroidal
Coil Number: Autotransformer
color: yellow
size: horizontal
type: EE,EI ,EC,PQ,EFD,EPC,UU,R,RH,DR, etc
Core grade: PC40, 3C90,TP4
Bobbin material: Phenolic
Application:
Power supply Driver
Lighting appliance
Communication equipment
LCD Power Supply
Converter and inverter

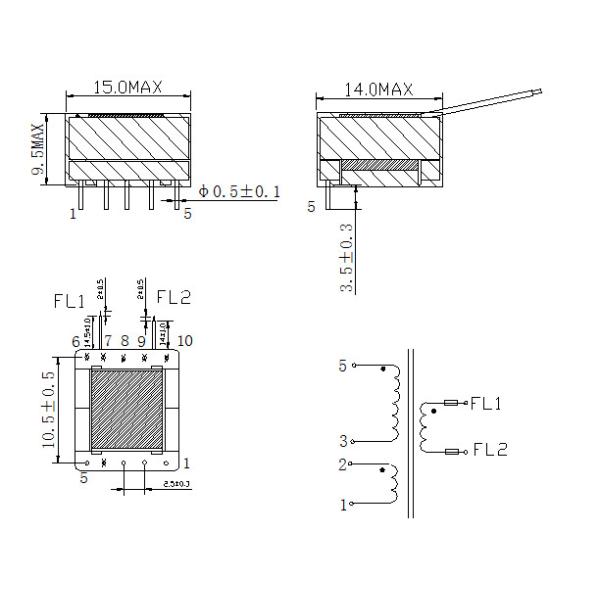

| NO |
Winding |
Material |
margin tape |
tube |
pins |
turns |
insulation |
| PIN1-5 |
PIN6-10 |
start |
end |
W=7.0mm |
| 1 |
N1 |
2UEWØ0.11*1P |
|
|
|
|
2--1 |
155Ts(close) |
2Ts |
| 2 |
N2 |
2UEWØ0.11*1P |
|
|
|
|
--1 |
50Ts((close) |
2Ts |
| 3 |
N3 |
TEX-EØ0.4 |
|
|
Ø 0.66 |
Ø 0.66 |
FL1--FL2 |
10Ts((close) |
2Ts |
| 4 |
N4 |
2UEWØ0.11*2P |
|
|
|
|
5--3 |
10Ts((close) |
2Ts |
| NO |
MATERIAL |
MATIERIAL SPEC. |
SUPPLIER |
UL NO. |
| 1 |
CORE |
EPC13/13 RM2.3KD |
JINCHUAN |
|
| 2 |
BOBBIN |
EPC13 T375J (5+5)P(H) |
CHANGCHUN |
E59481(S) |
| 3 |
WIRE |
2UEWØ 0.11 130℃ |
TAI-1 |
E85640 |
| 4 |
WIRE |
TEX-EØ0.4mm |
FURUKAWA |
E206440 |
| 5 |
TAPE |
CT-280 1mil*7.0mm &3.0mm &8mm YLW 130℃ |
YAHUA |
E165111 |
| 6 |
TUBE |
TFLØ 0.66mm TRN 150V 200℃ |
LANLING |
E156256 |
| 7 |
COPPER FOIL |
0.05*5.0mm |
BOTONG |
|
| 8 |
VARNISH |
8562/C |
HENGCHANG |
E200154 |
General information:
It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.
Storage Temperature: -40°C to 85°C
Operating Temperature: -40°C to 125°C
Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently
| OPERATING TEMPERATURE RANGE, PACKAGE QUANTITY, PRODUCT WEIGHT |
| Temperature range |
Humidity range |
Standard test conditions |
| Operating temperature* |
Storage temperature |
Operating temperature** |
Storage temperature** |
Operating temperature** |
Storage temperature** |
| ( ℃) |
( ℃) |
( % RH) |
( % RH) |
( ℃) |
( % RH) |
| -30 to +120 |
-40 to +80 |
10 to +95 |
10 to +95 |
25 ± 10 |
25 to +75 |
* With self-heating
** Maximum wet-bulb temperature 38°C, without dewing
*** Without dewing
